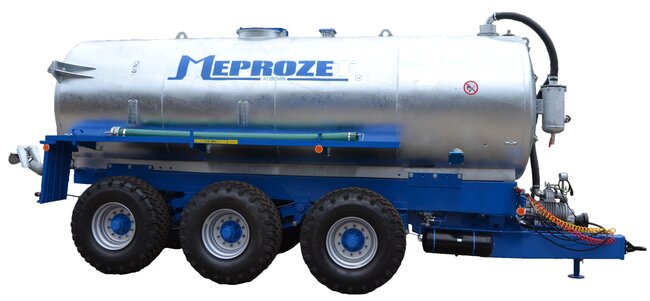

PN - 2/20

  • length - 8 680 mm
  • width - 2 550 mm
  • height - 3 600 mm
  • unladen weight - 7 500 kg
  • gross weight - 25 500 kg
  • tank capacity - 18 000 l
  • number of wheels - 6
  • wheel track - 2 000 mm
  • tyres - 20.5 R22.5
  • vertical load - 30 KN
  • tractor horsepower - 180 HP
  • filling time - 7 min
  • spreading spoon spilling width - 12 m
  • compressor type - JUROP PN 106M
  • compressor capacity - 11 000 l / min
Capacity PN-2/20
version		 Number of axles Wheel track Wheel setback Tyres Compressor
18 000 litres version A
standard		 3 2000 280 / 335 / 10 20,5 R22,5
retread		 JUROP
PN 106M
version B 3 2000 280 / 335 / 10 560 / 60 x 22,5

JUROP
PN 106M
version C 3  2100 280 / 335 / 10 600 / 55 x 22,5

JUROP
PN 106M
version D 3  2100 280 / 335 / 10 600 / 65 x 23
retread

JUROP
PN 106M
version E 3 2150 280 / 335 / 10 700 / 50 x 22,5

JUROP
PN 106M
version F 3 2150 280 / 335 / 10 700 / 50 x 26,5

JUROP
PN 106M

A slurry tanker has got the following components in its standard equipment:

  • 5" suction hose 3 m long, with a suction strainer
  • 5" suction hose 3 m long - extender
  • 5" quick connection for suction hose attachment
  • compressor with a safety valve
  • distributor with disc
  • damper - oil recuperator
  • mudguards
  • float valve in the upper part of the tank
  • overflow tank
  • manometer
  • adjustable supporting foot
  • replaceable tow eye
  • double-line braking system
  • 12 V electrical system
  • hydraulic system for opening the discharge valve
  • hydraulic system for injectors or dribble bars supply

A slurry tanker, beside its standard version, can also be manufactured in a special version and can have additional components, extending its functionality:

  • tyres 560/60x22.5; 600/55x22.5; 600/65 R23; 700/50x22.5 or 700/50x26.5
  • tank with special paint coating
  • gate valves on sides of the tank
  • Ø 420 mm upper hatch, manual or hydraulic
  • ladder
  • additional 3” sight-glasses
  • compressor PN 140M or other
  • PTO shaft
  • swivel tow eye or other
  • sprinkling distributors for backward or sideward
