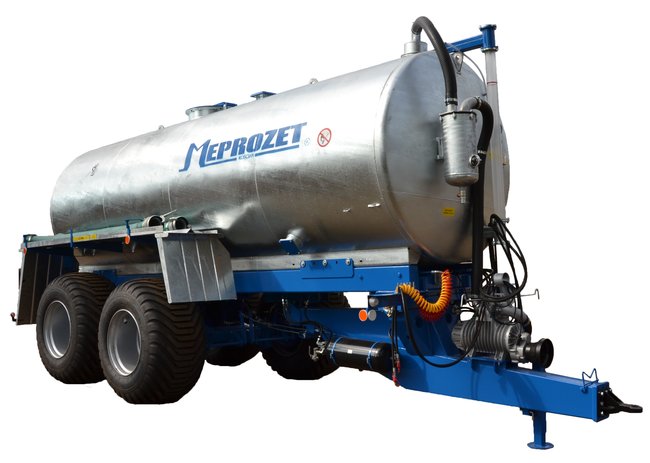

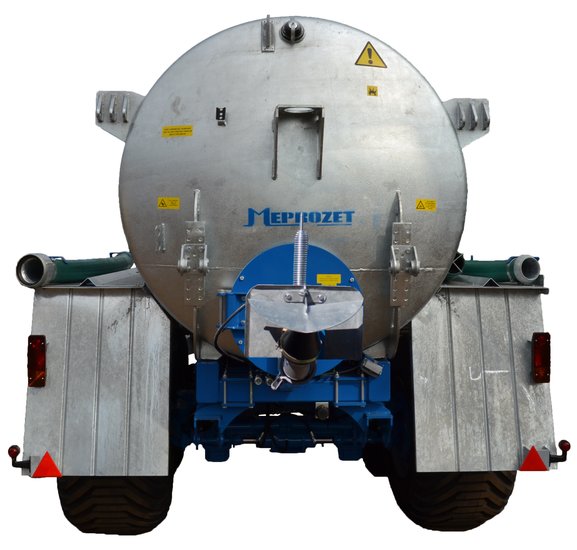

PN - 3/18
- length - 8 785 mm
- width - 2 700 mm
- height - 3 950 mm
- unladen weight - 8 600 kg
- gross weight - 28 600 kg
- tank capacity - 20 000 l
- number of wheels - 4
- wheel track - 2 250 mm
- tyres - 700 / 50 x 22.5
- vertical load - 30 KN
- tractor horsepower - 200 HP
- filling time - 8 min
- spreading spoon spilling width - 12 m
- compressor type - JUROP PN 106M
- compressor capacity - 11 000 l / min
Capacity | PN-3/18 version |
Number of axles | Wheel track | Wheel setback | Tyres | Compressor |
20 000 litres | version A standard |
2 | 2250 | 280 / 335 / 10 | 700 / 50 x 22,5 | JUROP PN 106M |
version B | 2 | 2250 | 280 / 335 / 10 | 750 / 60 x 30,5 |
JUROP |
|
version C | 2 | 2250 | 280 / 335 / 10 | 750 / 45 x 26,5 |
JUROP |
|
version D | 2 | 2250 | 280 / 335 / 10 | 800 / 45 x 26,5 |
JUROP |
A slurry tanker has got the following components in its standard equipment:
- 5" suction hose 3 m long, with a suction strainer
- 5" suction hose 3 m long - extender
- 5" quick connection for suction hose attachment
- compressor with a safety valve
- distributor with disc
- damper - oil recuperator
- mudguards
- sprung drawbar
- float valve in the upper part of the tank
- overflow tank
- manometer
- adjustable supporting foot
- replaceable tow eye
- double-line braking system
- 12 V electrical system
- hydraulic system for opening the discharge valve
- hydraulic system for injectors or dribble bars supply
A slurry tanker, beside its standard version, can also be manufactured in a special version and can have additional components, extending its functionality:
- tyres 750/60x30.5; 750/45x26.5 or 800/45x26.5
- tank with special paint coating
- gate valves on sides of the tank
- Ø 420 mm upper hatch, manual or hydraulic
- ladder
- additional 3” sight-glasses
- compressor PN 140M or other
- PTO shaft
- swivel tow eye or other
- sprinkling distributors for backward or sideward
